HeatSight Optics TPM C19-640 54mm LRF

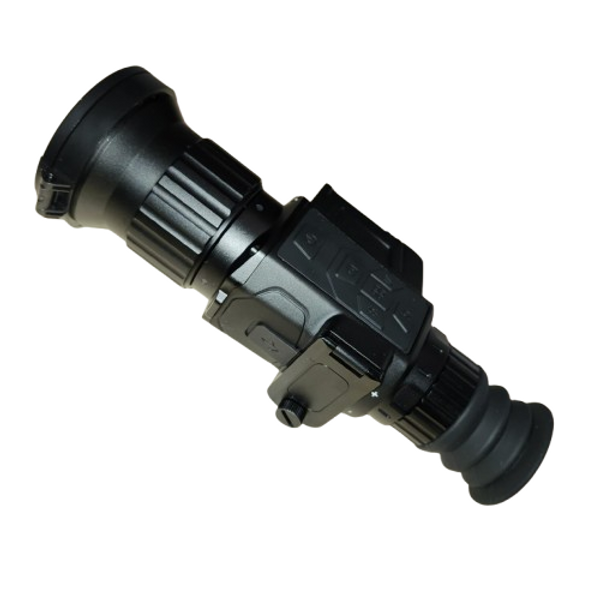

HeatSight Optics TPM-640L 54mm Thermal Imaging Scope with Laser Range Finding

Model: TPM-6L
Lens: 54mm
Digital Zoom: 1-8x
Resolution: 640x512
Feature: Laser Range Finding

The HeatSight Optics TPM-640L 54mm Thermal Imaging Scope with Laser Range Finding is a premium tool for hunters, tactical professionals, and outdoor enthusiasts. Combining thermal imaging technology with advanced laser range finding, the TPM-640L delivers unmatched precision and functionality, ensuring you are equipped for any challenge.

Key Features:

• Thermal Imaging Clarity: The 640x512 resolution provides sharp and detailed thermal images, making it easy to detect and identify targets.
• Integrated Laser Range Finder: The built-in laser range finder offers accurate distance measurement, enhancing your targeting accuracy and situational awareness.
• 54mm Objective Lens: The 54mm lens offers an optimal balance between a wide field of view and effective detection range, suitable for various applications.
• Variable Digital Zoom: With a 1-8x digital zoom, the TPM-640L allows for precise targeting and broad scanning, adaptable to your needs.
• Rugged Construction: Designed to withstand harsh environments, the TPM-640L is durable and reliable, ensuring consistent performance in any condition.
• User-Friendly Interface: Intuitive controls and a clear display make operation straightforward, even in low-light scenarios.
• Versatile Applications: Perfect for hunting, surveillance, and tactical operations, the TPM-6L enhances your capabilities with its comprehensive feature set.

The HeatSight Optics TPM-640L 54mm Thermal Imaging Scope with Laser Range Finding is engineered to provide superior thermal detection and precise distance measurement. Whether tracking game or conducting a nighttime mission, the TPM-640L equips you with the clarity, accuracy, and reliability needed to succeed.

Specs:

• Thermal resolution

  • 640×512

• Detector type

  • Vanadium oxide uncooled infrared focal plane

• Pixel size

  • 12μm

• Focus length / FOV

  • 54mm
  • 8.1°×6.5°

• Ranging range (building)

  • 10m~1500m

• Distance measurement accuracy (building)

  • ＜400m ±1m
  • ＞400m ±0.4%

• Work band

  • 8~14μm

• NETD

  • ≤ 40mk@25℃,@F/1.0

• Frame rate

  • ≤50Hz

• Focusing mode

  • Manual

• Detection range

  • Character (1.7mx0.5mx0.3m)
    • 25mm: 2361m
    • 35mm: 3306m
  • Vehicle (4.5mx2.0mx1.5m)
    • 25mm: 6250m
    • 35mm: 8750m

• Perception distance

  • Character (1.7mx0.5mx0.3m)
    • 25mm: 590m
    • 35mm: 826m
  • Vehicle (4.5mx2.0mx1.5m)
    • 25mm: 1563m
    • 35mm: 2188m

• Display screen type

  • OLED

• Resolution ratio

  • 1440×1080

• Display size

  • 0.39 inches

• Electronic zoom

  • 1× / 2× / 4× / 8×

• Diopter regulation

  • ±5SD

• Palette

  • White hot
  • Black hot
  • Fire hot
  • Rainbow
  • Iron red
  • Cold color

• Hot point track

  • Supported

• Picture in picture

  • Supported

• Language

  • Chinese
  • Traditional Chinese
  • English
  • Russian
  • German

• Capacity

  • Built-in 16G EMMC (The system takes up some space and it is 13.8G actually)

• Photographing

  • Supported

• Recording

  • Supported

• Image/video format

  • JPG / MP4

• USB interface

  • Charging / export image and video

• Detachable rechargeable lithium battery

  • 1400mAh×2 (battery model 18350)

• Overall power consumption

  • ≤1.8W

• Time of endurance

  • ≥5 hours

• Work temperature

  • -20℃ ~ +60℃

• Storage temperature

  • -30℃ ~ +70℃

• Impact

  • ≤1000G

• Protection grade

  • IP66

• Product size

  • 196.5 x 96 x 66mm

• Product weight

  • 780g
