Product Overview

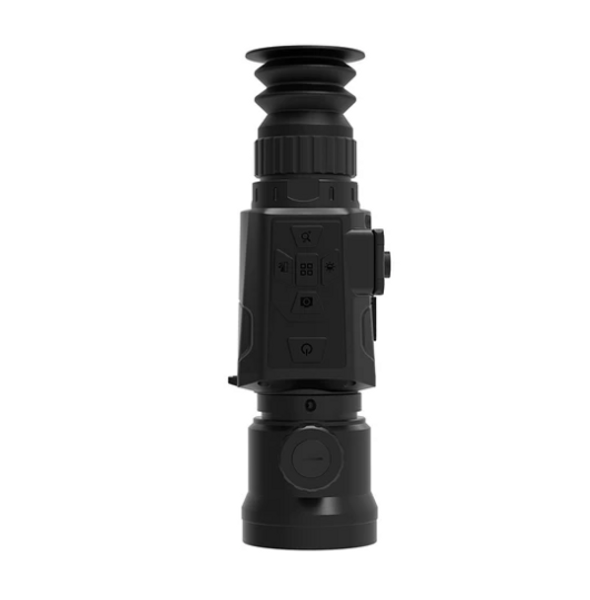

HeatSight Optics TPM-640 54mm Thermal Imaging Scope
Model: TPM-6
Lens: 54mm
Digital Zoom: 1-8x
Resolution: 640x512
The HeatSight Optics TPM-640 54mm Thermal Imaging Scope is a cutting-edge tool designed for the serious hunter and tactical professional. Engineered with precision and clarity in mind, the TPM-6 combines advanced thermal imaging technology with robust construction to provide unparalleled performance in the field.
Key Features:
- High-Resolution Imaging: The 640x512 resolution ensures crisp and clear thermal images, allowing you to detect and identify targets with ease.
- 54mm Lens: The 54mm objective lens provides a balanced field of view and excellent detection range, making it ideal for various applications.
- Digital Zoom: With a 1-8x digital zoom, you can effortlessly adjust your view to focus on distant targets or scan a broader area.
- Durable Construction: Built to withstand harsh environments, the TPM-6 is rugged and reliable, ensuring consistent performance in any condition.
- User-Friendly Interface: The intuitive controls and clear display make it easy to operate, even in low-light conditions.
- Versatile Applications: Perfect for hunting, surveillance, and tactical operations, the TPM-6 delivers top-tier thermal imaging capabilities.
Enhance your night vision and thermal detection capabilities with the HeatSight Optics TPM-640 54mm Thermal Imaging Scope. Whether you're tracking game or conducting a nighttime operation, the TPM-640 54mm provides the clarity and precision you need to succeed.
Specs:
- Thermal resolution: 640×512
- Detector type: Vanadium oxide uncooled infrared focal plane
- Pixel size: 12μm
- Focus length/FOV:
- 54mm/8.1°×6.5°
- Work band: 8~14μm
- NETD: ≤ 40mk@25℃, @F/1.0
- Frame rate: ≤50Hz
- Focusing mode: Manual
Detection range:
- Character (1.7m x 0.5m x 0.3m):
- 25mm: 590m
- 35mm: 826m
- 54mm: 1275m
- 75mm: 1771m
- Vehicle (4.5m x 2.0m x 1.5m):
- 25mm: 1563m
- 35mm: 2188m
- 54mm: 3375m
- 75mm: 4688m
Perception distance:
-
Character (1.7m x 0.5m x 0.3m):
- 25mm: 2361m
- 35mm: 3306m
- 54mm: 5100m
- 75mm: 7083m
-
Vehicle (4.5m x 2.0m x 1.5m):
- 25mm: 6250m
- 35mm: 8750m
- 54mm: 13500m
- 75mm: 18750m
-
Display screen type: OLED
-
Resolution ratio: 1440×1080
-
Display size: 0.39 inches
-
Electronic zoom: 1×/2×/4×/8×
-
Diopter regulation: ±5SD
-
Palette: White hot, Black hot, Fire hot, Rainbow, Iron red, Cold color
-
Hot point track: Supported
-
Picture in picture: Supported
-
Language: Chinese, traditional Chinese, English, Russian, German
-
Capacity: Built-in 16G EMMC (13.8G available)
-
Photographing: Supported
-
Recording: Supported
-
Image/video format: JPG/MP4
-
USB interface: Charging/export image and video
-
Detachable rechargeable lithium battery: 1400mAh×2 (battery model 18350)
-
Overall power consumption: ≤1.8W
-
Time of endurance: ≥5 hours
-
Work temperature: -20℃ ~ +60℃
-
Storage temperature: -30℃ ~ +70℃
-
Impact: ≤1000G
-
Protection grade: IP66
-
Product size: 198x57.5x64.3mm
-
Product weight: 580g
